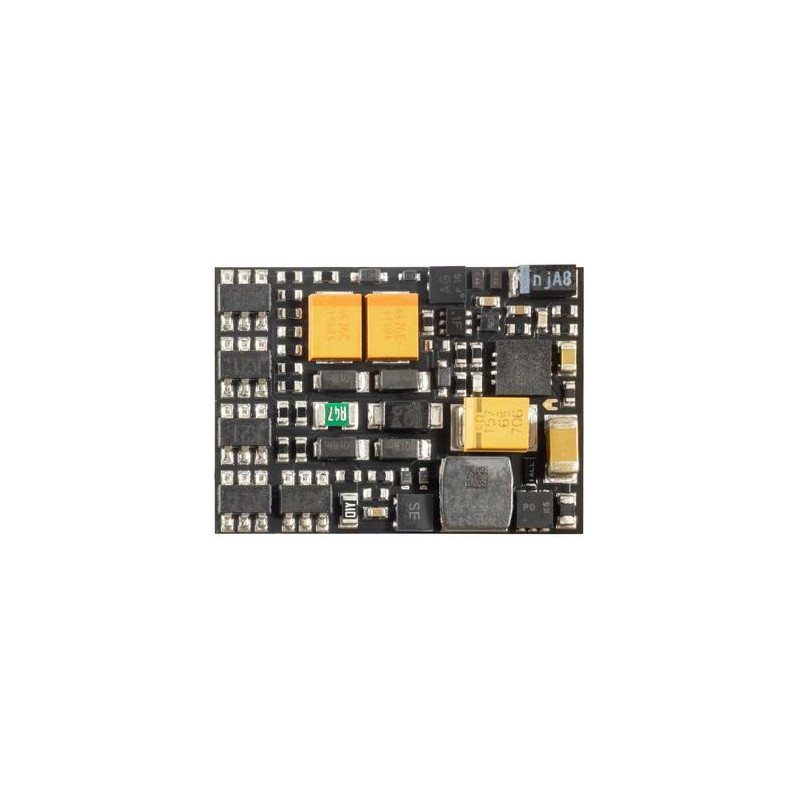

10-function sound function decoder with PluX22 connector NEM658
with PluX22 connector according to NEM658
Expédition
Retours et retractation
Description
Audio function decoder with PluX22 connector according to NEM658
- 21 connexions :
- 2 track connections
- 0 motor connections
- 11 function outputs
- + Common
- 2 loudspeaker outputs
- 2 SUSI / Servo outputs
- Ground
- ELKO Connection
- 1 input connection
- 2 pre-wired solder pads :
- 16V capacitor
Product Details
FS850P22
Data sheet
- Sound
- Yes, ready
- Dimensions (mm)
- 21 x 15 x 3,6
- type of connection
- 11 electronic wires
- Auxiliary outputs
- 10
- SUSI
- Yes
- Connection for capacitor or STACO
- yes with electronic wires
- Connection for servomotor
- 2
