8-function non-sound function decoder with 8-pin interface

MX685R

with 8-pin interface according to NEM652





Expédition





Retours et retractation

Description

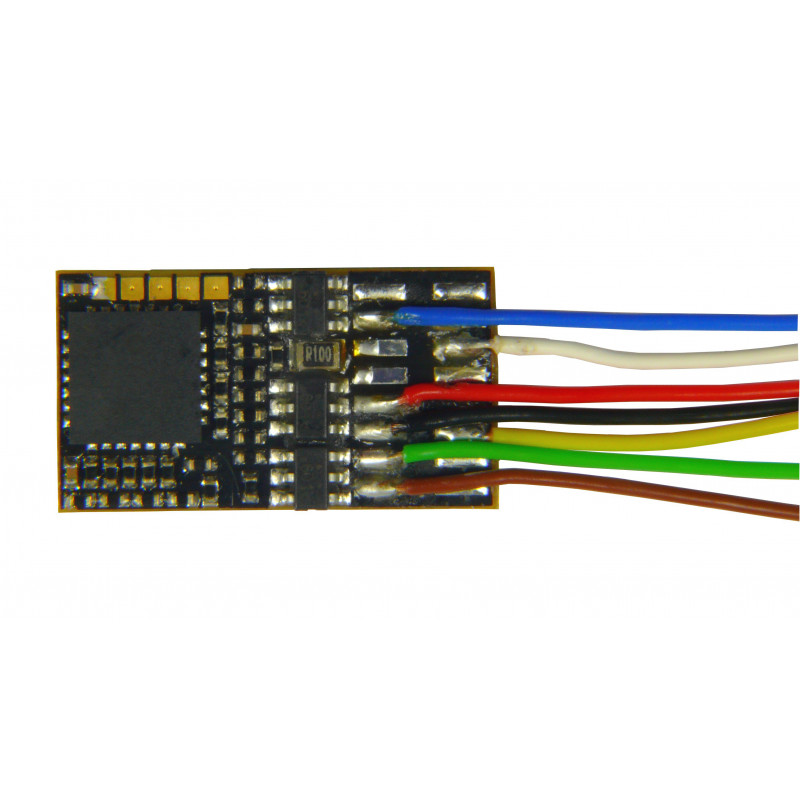

Non-sound function decoder with 8-pin connector according to NEM652

8 connections:

  • 2 track connections
  • 0 motor connections
  • 5 function outputs
  • 1 unamplified function output
  • 2 SUSI outputs
  • + common
Product Details
MX685R
9009606685032

Data sheet

Power
Digital DCC
Dimensions (mm)
20 x 11 x 3,5 mm
type of connection
8 pins
Auxiliary outputs
8
Operating electric current (A)
1 A
SUSI
Yes
Connection for capacitor or STACO
No
Connection for servomotor
2 using SUSI outputs
