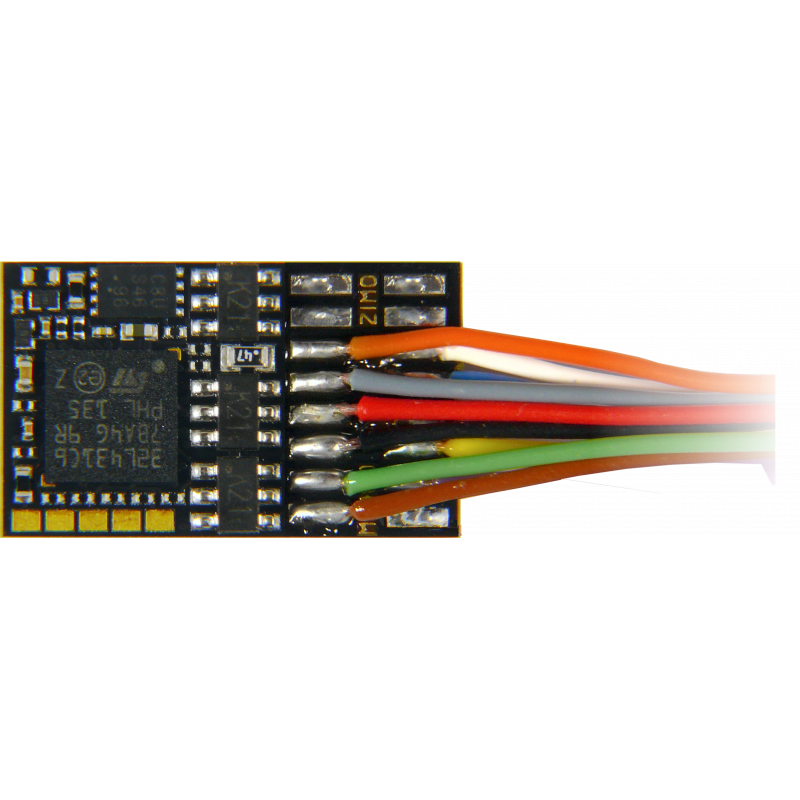

6-function non-sound traction decoder with 11 solder cables

MN300

with solder cables according to NEM 650





Expédition





Retours et retractation

Description

Non sound traction decoder without connector

11 wires:

  • 2 track connections
  • 2 motor connections
  • common plus
  • ground
  • energy reserve plus
  • 4 function outputs

4 solder pads:

  • 2 function outputs
  • 2 SUSI outputs

WARNING: Not compatible with MfX operation

Replaces the MX630 reference

Product Details
MN300
9009606300904

Data sheet

Sound
No
Dimensions (mm)
17,5 x 10,5 x 3,1
type of connection
11 electronic wires
Auxiliary outputs
6
Operating electric current (A)
1,0
SUSI
Yes
Connection for capacitor or STACO
yes on PluX interface
Maximum capacitor capacity (μF)
15000
Connection for servomotor
2
