6-function non-sound traction decoder with wired 8-pin interface
with 8-pin interface according to NEM 652
Expédition
Retours et retractation
Description

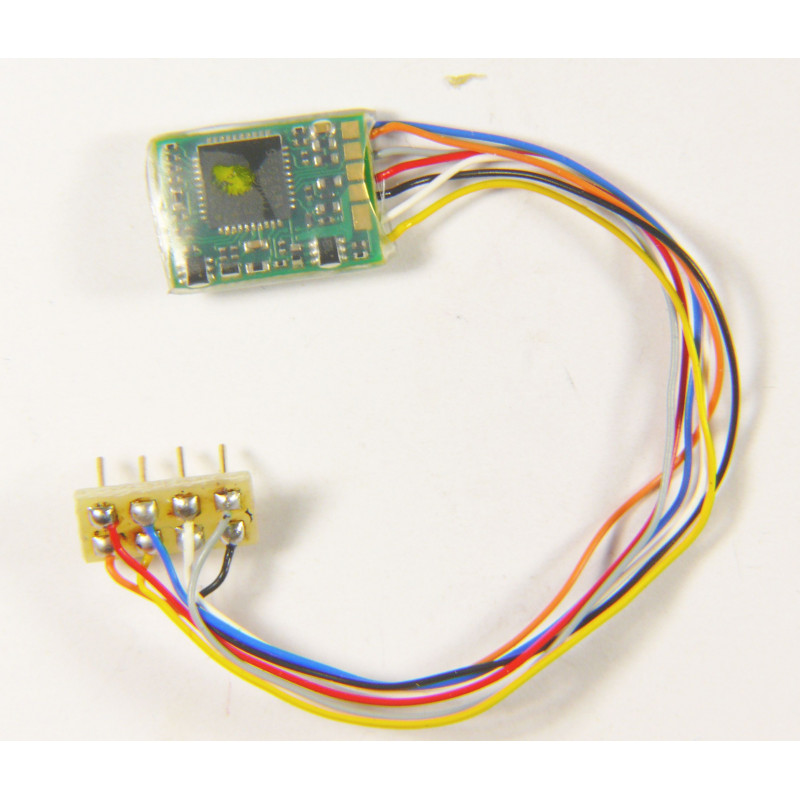

Non-sound traction decoder with 8-pole NEM652 connector
- on NEM652 connector:
- 2 track connections
- 2 motor connections
- common
- ground
- 2 function outputs
- 2 solder pads:
- 2 function outputs / SUSI
WARNING: Not compatible with MfX operation
WARNING: Production discontinued, replaced by reference MN170R
Product Details
MX617R
9009606617989
Data sheet
- Sound
- No
- Dimensions (mm)
- 13 x 9 x 2,6
- type of connection
- 8 pins
- Auxiliary outputs
- 6
- Operating electric current (A)
- 0,8 A
- SUSI
- Yes
- Connection for capacitor or STACO
- yes on electronic tags
- Connection for servomotor
- 2
