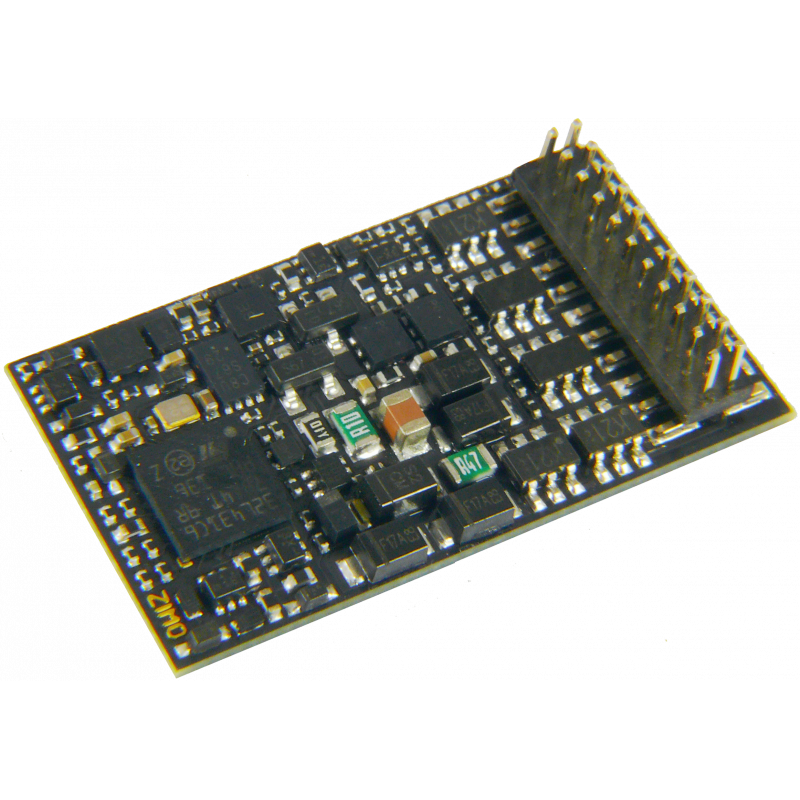

10-function non-sound traction decoder with PluX22 interface

MN330P22

with PluX22 interface according to NEM 658





Expédition





Retours et retractation

Description

Non-audible traction decoder with NEM658 PluX22 connector

  • 20 connections:
    • 2 track connections
    • 2 motor connections
    • common plus
    • ground
    • energy reserve plus
    • 10 function outputs
    • 2 SUSI outputs
    • 1 logic input or output

Replaces part number MX633P22

Product Details
MN330P22
9009606330222

Data sheet

Sound
No
Dimensions (mm)
30 x 15,3 x 2,2
type of connection
PluX22
Auxiliary outputs
10
Operating electric current (A)
2
SUSI
Yes
Connection for capacitor or STACO
yes on PluX interface
Connection for servomotor
2
