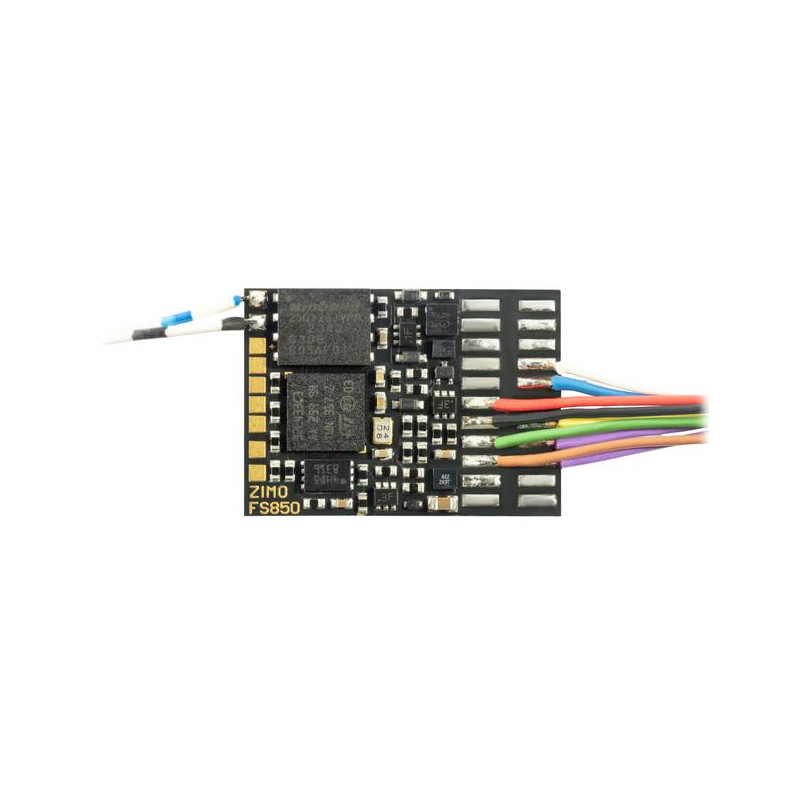

10-function sound function decoder with 8 pins connector NEM652
with 8 pins connector according to NEM652
Expédition
Retours et retractation
Description
Audio function decoder with 8 pins connector according to NEM652
- 6 connexions :
- 2 track connections
- 0 motor connections
- 3 function outputs
- + Common
- 4 connexions with wire
- 2 function outputs
- 2 loudspeaker outputs
- 2 pre-wired solder pads :
- 16V capacitor
- 11 solder pads :
- 2 SUSI / Servo outputs
- Ground
- ELKO Connection
- 6 function outputs
- 1 input connection
Product Details
FS850R
Data sheet
- Sound
- Yes, ready
- Dimensions (mm)
- 21 x 15 x 3,6
- type of connection
- 11 electronic wires
- Auxiliary outputs
- 10
- SUSI
- Yes
- Connection for capacitor or STACO
- yes with electronic wires
- Connection for servomotor
- 2
