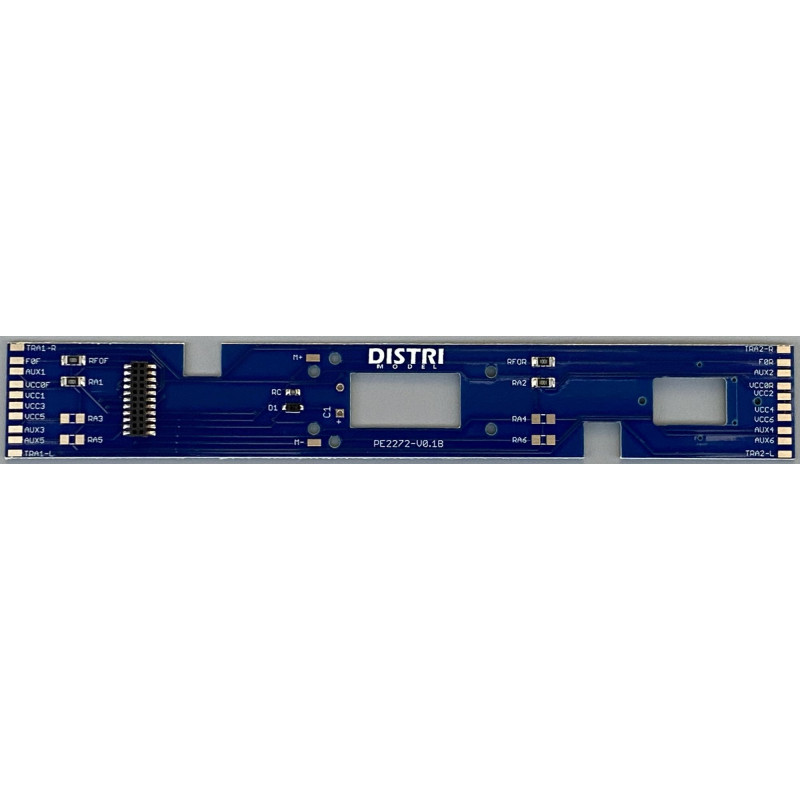

Digitization board NEM 658 PluX 22 pour CC6500/21000/72000 Hornby-Jouef

Printed circuit board with DCC NEM 658 PluX22 socket, 8 independent functions to equip the CC6500/CC21000/CC72000 Jouef Hornby.

Sizes 150 x 22 mm.
This board equipped with a PluX22 decoder allows you to have 8 functions (F0F, F0R, AUX1, AUX2, AUX3, AUX4, AUX5, AUX6).
You can control the lights independently with 4 functions (F0F, F0R, AUX1, AUX2).
This board has two slots, one for a 2200uF 25V capacitor and one for a 13x18mm speaker reference HPC1318.

You have 4 functions left (AUX3, AUX4, AUX5, AUX6), 2 at each end to control other lights or accessories, see the list below.

• cabin lighting
• 3rd lights
• electric uncoupler
• smoke generator
• fan
• etc...

To better understand the NEM658 standard aka PluX, we invite you to download the PDF available opposite.

Be careful when using a DMPE board, it is imperative to program the decoder to have access to the light control functions independently. As this task is quite tedious with most control units, we offer decoders, sound or not, preprogrammed, ready to use.
To do this, remember to choose the "DMPE Programming" option located at the bottom of the description of the chosen item in the "Digital / Decoders" or "Digital / Preprogrammed Decoders" section or a DMPExxx reference of sound decoder in the "Digital / Sound Decoders" or "Digital / Programmed Sound Decoders" section

This range of products received the 2017 New Technologies Model of the Year diploma from the FFMF

Similar to the old production of Miniatures Passion under the reference MPPE472 or MPPE472-22 or MPPE2272
