Reference: MX634D
Brand: ZIMO ELEKTRONIK GmbH

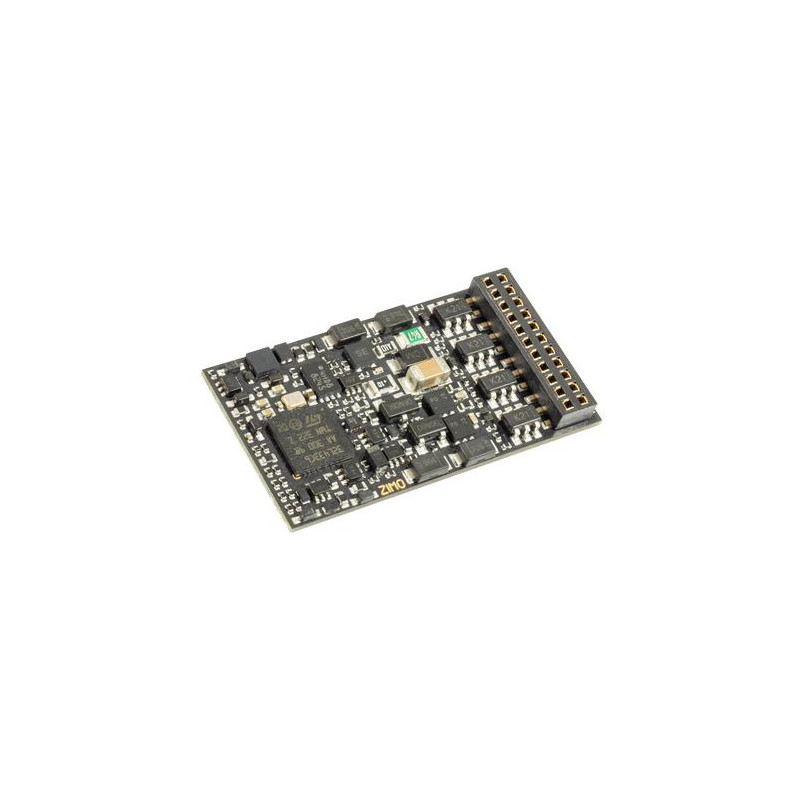

6-function non-sound traction decoder with 21MTC non-Morop interface
21MTC interface differs from NEM 660
- Rolling stock
- Electronic boards
- Digital
- Lingthning strips
- Contact strips
- Wired SMD LEDs
- Layout construction
- Couplings
- Storage
- Lubricants
- Showcases
- Containers
- Tools
- Adhesives
- Catalogs
10-function non-sound traction decoder with 21MTC interface
with NEM 660 21MTC interface
Expédition
Retours et retractation
Description
Non-sound traction decoder with NEM660 21MTC connector compliant with Morop standard
- 21 connections:
- 2 track connections
- 2 motor connections
- common
- ground
- 2 SUSI outputs
- 4 logic function outputs
- 6 unamplified function outputs
- 2 connections for axis sensors, reed switches, etc.
- x solder pads:
- 2 energy reserve connections
Replaces MX634C reference
Product Details
MN340C
9009606340238
Data sheet
- Sound
- No
- Dimensions (mm)
- 28,6 x 15,3 x 2,5
- type of connection
- 21MTC
- Auxiliary outputs
- 10
- Operating electric current (A)
- 2
- SUSI
- Yes
- Connection for capacitor or STACO
- yes on electronic tags
- Connection for servomotor
- 2
