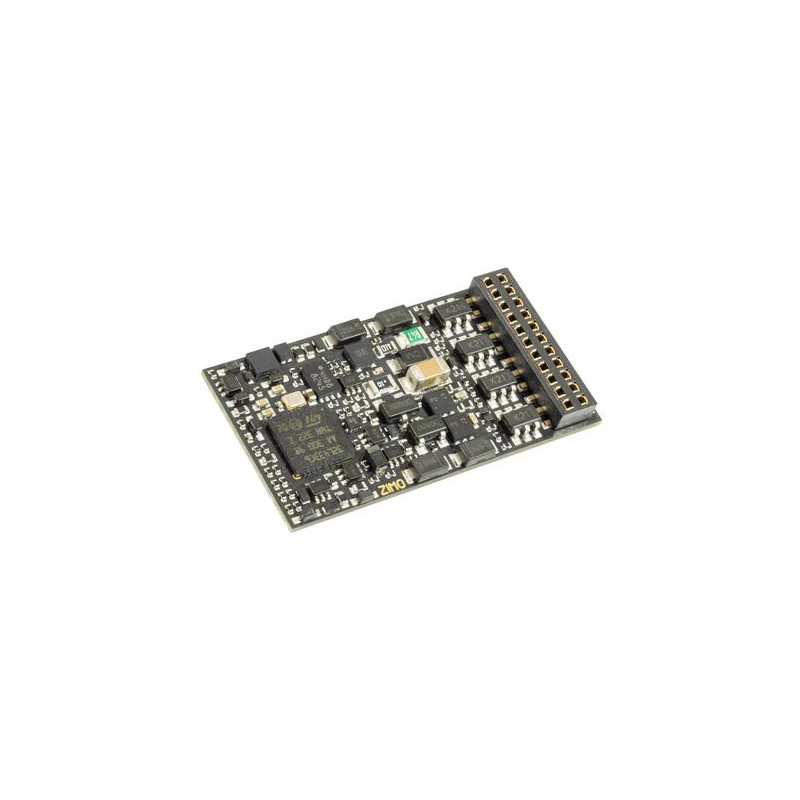

10-function non-sound traction decoder with 21MTC interface non-MOROP

MN340D

with 21MTC interface, deviating from the NEM 660





Expédition





Retours et retractation

Description

Non-sound traction decoder with 21MTC connector:

  • 21 connections:
    • 2 track connections
    • 2 motor connections
    • common
    • ground
    • 2 SUSI outputs
    • 8 logic function outputs
    • 2 unamplified function outputs
    • 2 connections for axis sensors, reed, etc.
  • 2 solder pads:
    • 2 energy reserve connections

Replaces the MX634D reference

Product Details
MN340D
9009606340214

Data sheet

Sound
No
Dimensions (mm)
28,6 x 15,3 x 2,5
type of connection
21MTC
Auxiliary outputs
10
Operating electric current (A)
1,2
SUSI
Yes
Connection for capacitor or STACO
yes on electronic tags
Connection for servomotor
2
