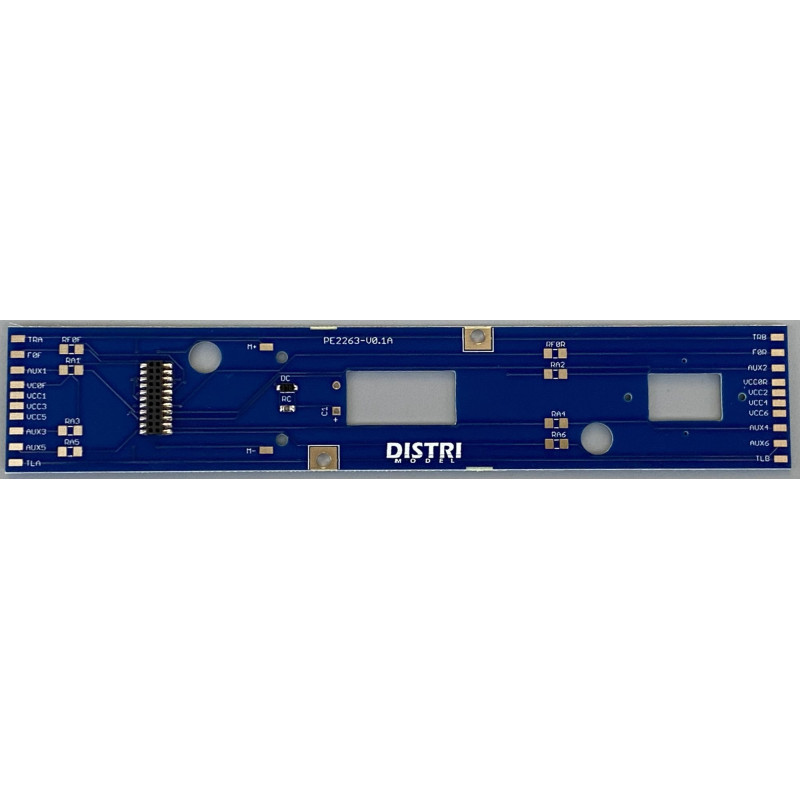

Digitization board NEM 658 PluX22 for CC6500/21000/72000 bi-bloc chassis Jouef

Printed circuit board with DCC socket NEM 658 PluX22, 8 independent functions to equip the CC6500/21000/72000 Jouef bi-bloc chassis.

Sizes 140 x 28 mm.
This board equipped with a PluX22 decoder allows you to have 8 functions (F0F, F0R, AUX1, AUX2, AUX3, AUX4, AUX5, AUX6).
You can control the lights independently with 4 functions (F0F, F0R, AUX1, AUX2).
You have 4 functions left (AUX3, AUX4, AUX5, AUX6), 2 at each end to control other lights or accessories, see the list below.

• cabin lighting
• 3rd lights
• electric uncoupler
• smoke
• fan
• etc...

To learn more about the NEM658 aka PluX standard, we invite you to download the PDF available opposite.

Complete instructions illustrated with numerous color photos.

Please note that when using an MPPE board, it is essential to program the decoder to access the light control functions independently. As this task is quite tedious with most control units, we offer decoders, whether audible or not, pre-programmed and ready to use.
To do this, remember to choose the "MPPE Programming" option located at the bottom of the description of the chosen item in the "Digital / Decoders" or "Digital / Preprogrammed Decoders" section or a MPPExxx reference of sound decoder in the "Digital / Sound Decoders" or "Digital / Programmed Sound Decoders" section

This range of products received the 2017 New Technologies Model of the Year diploma from the FFMF

Similar to the old production of Miniatures Passion under the reference MPPE463
